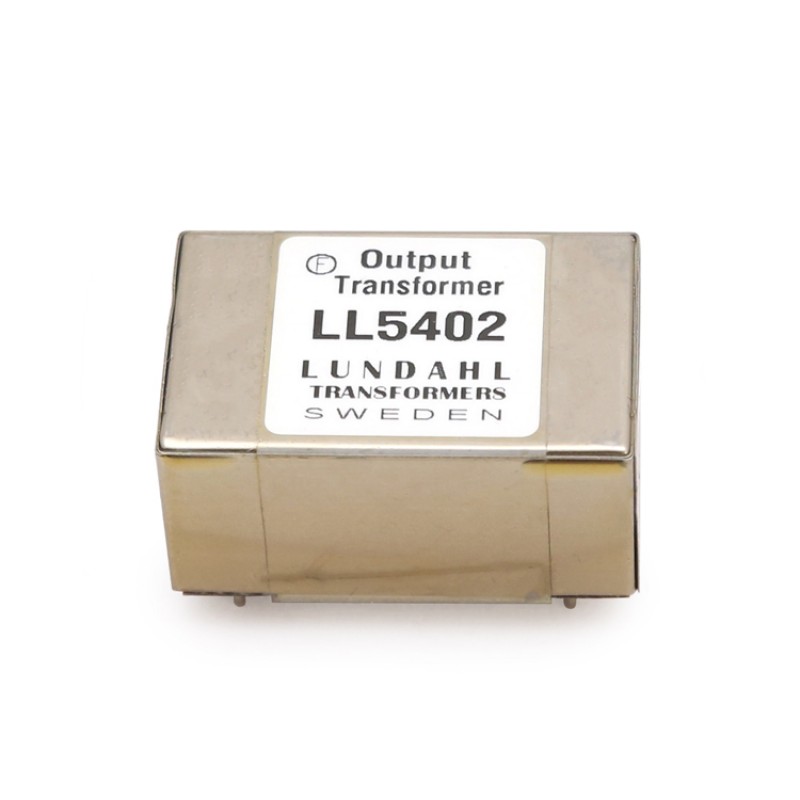

LL5402 is an audio output transformer for unbalanced drive, ideally used with mixed feedback drive circuits (see application example below). If primary pins 1 and 5 are connected to ground, the windings are arranged such that cold ends of the primary windings surround each secondary winding. This reduces the effect of capacitance between the primary and the secondary windings.
